High Resolution Audio
From source to speaker, Sony has brought together an array of technologies for the ultimate audio experience. For High-Resolution Audio files, the digital amp and specialized tweeters reproduce every subtlety, so you can hear each note as the artist intended.
DSEE HX upscales your music files
Take your audio experience beyond CD quality. DSEE HX builds on our proprietary DSEE technology, upscaling compressed audio files to a level closer to High-Resolution Audio. By restoring the subtleties of original recordings lost during the compression process, DSEE HX delivers a rich, studio-quality audio experience for all your music.
Recreate original sound spaces on your tabletop
The CAS-1 recreates original sound spaces from recording studio or live performance venues, giving you the live performance experience. Enjoy music playback that reveals that unfiltered sound the artists wanted you to hear.

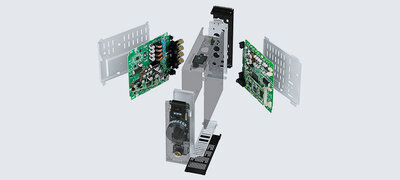

Dual amplifiers
Two distinct amplification systems deliver outstanding High-Resolution Audio experiences the way you like to listen. The compact chassis houses two independent circuit boards for the speaker and headphone amps. Headphones and speakers have distinct amplification requirements due to their differing power outputs and proximity to the drivers. The full digital S-Master HX amplifier drives the separate speakers, reproducing dynamic and powerful sound despite its compact design. The headphone amp and separate high-end digital-analogue converter is a better solution for the isolated headphone listening experience, driving headphone sound powerfully yet precisely.

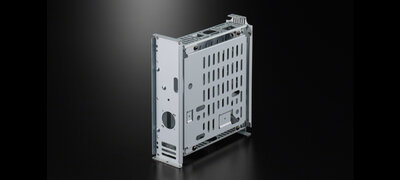

Chassis design
The CAS-1 boasts a reinforced chassis frame (outer surface and frame) and beams designed to prevent damage to the casing and circuit board and enhance sound quality. The base structure uses a combination of high-end components and sheet metal to deliver high precision. The aluminum die-cast panel provides high rigidity and low resonance, placing minimal strain on the substrate when mounted. It optimizes heat flow away from components, enhancing both sound quality and miniaturization.
Full Digital S-Master HX amplifier
This newly designed full digital amplifier is the product of over ten years of Sony digital amplifier technology development. Through a major overhaul of the noise shaper and power circuit, we achieved substantial noise reduction for high-purity playback and subtle information detail unique to High-Resolution Audio.

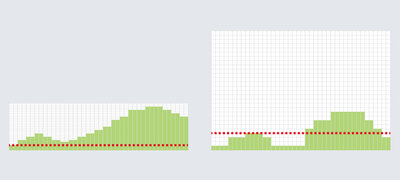

Pulse height volume
The CAS-1 maintains the original audio detail at lower volumes for dynamic audio even in confined spaces. Common digital amplifiers (right) shred the original music data at low volumes. Pulse height volume (left) adjusts the power supply voltage to maintain high-density sound data at low volumes. Pulse height volume reduces power supply noise (dotted red line) at low volumes, producing a cleaner sound than common digital amplifiers.

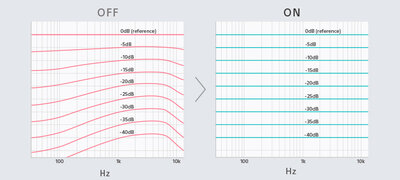

Low Volume Mode
Conventional compact tabletop speakers frequently lose the treble/bass balance of the original sound at lower volumes. Low Volume Mode optimizes these properties, reproducing the faithful balance of the original sound at low volumes.

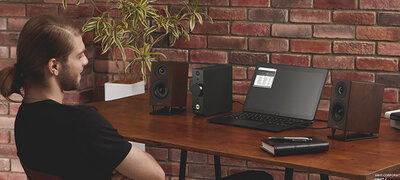

Separated Speakers
Recording engineers position their left and right speakers to form an equilateral triangle for optimal audio monitoring. The CAS-1's near-field design lets you reproduce this layout at home for ideal stereo sound imaging.

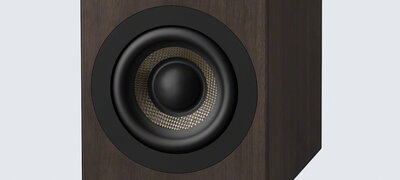

2.5" high-rigidity carbon fiber cone woofers
Harder and lighter than fiberglass, high-rigidity carbon fiber cones combine with a powerful magnetic circuit to generate tight, powerful bass. The CAS-1 main unit is housed in a molded frame to lessen distortion, suppress unit vibrations, and create high-quality sound.

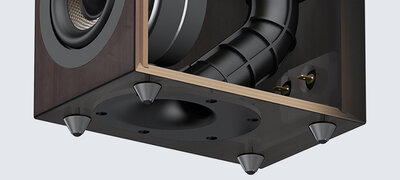

Bottom side bass reflex port
The wide flare on the bass reflex port reduces duct noise so that the bass remains tight and free of distortion, even close to the speakers.

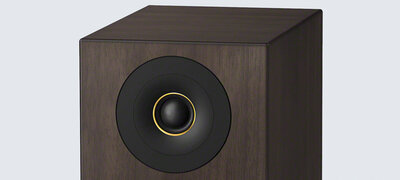

1/2" Soft Dome Tweeter
The soft dome tweeters feature a wide-dispersion design specially developed for reproducing the ultra-high frequency audio in High Resolution Audio formats. Enjoy the added realism from reproducing subtle harmonics and sound textures not possible with conventional tabletop speakers.

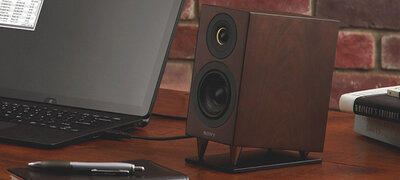

High-grade painted wooden enclosure
A half-inch-thick MDF baffle board effectively stops vibrations, and birch plywood on the wrap board brings out beautiful controlled acoustic harmonic vibration. Braces reinforce the enclosure, and sound-absorbent material controls enclosure vibrations. Even the paint is specifically chosen to further suppress unwanted harmonic vibration in addition to providing a stunning gloss appearance.

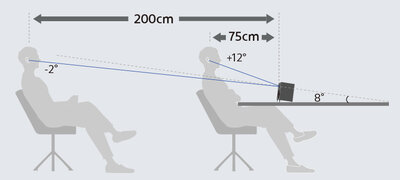

8 speaker angle
Adjust the speakers to an 8 upward angle to ensure sound quality when the listener is seated 2.5 to 6.5 feet away. We designed the CAS-1 speakers to deliver better sound straight to your ears when tilted into optimal position, without unwanted reflection or interference.

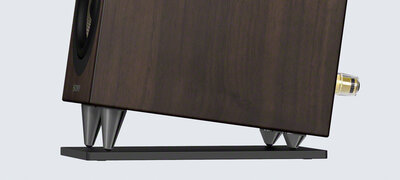

Speaker base & Brass spikes
The CAS-1 audio system includes exclusive speaker accessories specially designed to avoid interference and deliver High-Resolution Audio in the near field-the area between 2.5 to 6.5 feet from the separate speakers. Install the included brass spikes to angle speakers upward an ideal 8 ° to deliver sound straight to your ears, and the included 1/4" thick steel speaker base attachments to mitigate excess reflection. These easy-to-install accessories allow you to achieve excellent acoustics in small spaces without troublesome adjustments. The CAS-1 includes everything you need to enjoy original sound space on your tabletop. Just add your favorite music to create your own soundscapes.

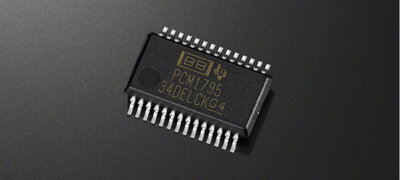

D/A converter (PCM1795)
CAS-1 uses the same 32-bit high-precision digital-to-analogue converter (DAC) used in Sony's acclaimed HAP-Z1ES High-Resolution Audio player. This DAC extracts High-Resolution Audio detailed sound field information from sound sources in its entirety, producing fuller, richer sound that recreates the original space.

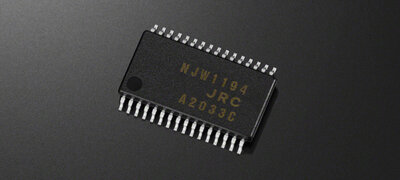

Volume control (NJW1194)
For volume control, CAS-1 uses electronic volume (NJW1194 ) with high sound quality. NJW1194 minimizes noise and distortion at low volumes for less deterioration of sound quality. Enjoy high-quality sound faithful to the original sound space, without unwanted distortion.

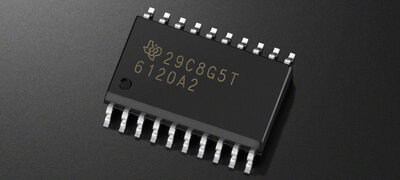

Headphone amplifier (TA6120A)
The CAS-1 uses the same excellent headphone amplifier IC used in the high-precision Sony PHA-2 Portable High-Resolution Audio DAC/Headphone Amplifier to drive headphone sound powerfully and precisely. Boasting excellent drive compared to regular operational amplifiers (op-amp), this headphone amplifier can even drive high-impedance headphones to effectively reproduce high-quality sound.
Toggle outputs on and off with a relay
No expense was spared in the quest for a pure audio experience on the CAS-1. Instead of a semiconductor switch, we implemented an output toggle circuit that uses a relay with little contact resistance and good sound.

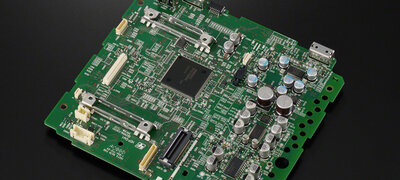

Ideal pattern design with four-layer circuit board
The CAS-1 main unit houses a four-layer circuit board that allows for ideal routings for earth and power supply patterns. Component layout is designed with a beautifully symmetrical pattern based on established high-end models for cleaner sound with less noise.

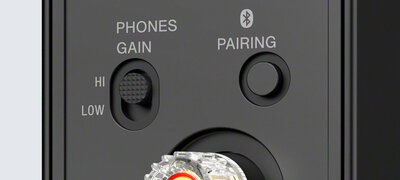

Gain toggle switch
Enjoy the best possible sound using your favorite headphones with adjustable gain control. Gain on headphones amplifiers is the maximum amount the amplifier can increase a signal. The CAS-1 features a dedicated headphone gain toggle switch to allow you to match impedance to your headphone type, enhancing the listening experience for headphones of varying impedance.

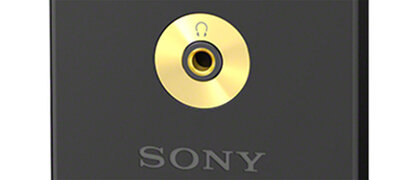

Robust headphone jack
The front side of the CAS-1 features a robust 1/8" mini plug headphone port made from high-quality metal parts. We use quality metal parts to ensure that your headphone jack fits snugly and securely each and every time. This stable connection prevents distortion and delivers uncompromising sound quality. The universal 1/8" mini plug size ensures wide compatibility so you can use the same headphones at home that you use with your Walkman® or smartphone.
High quality wireless streaming
LDAC is a new audio technology from Sony that lets you enjoy high-quality wireless audio via Bluetooth®. With triple the data transmitted, LDAC provides an enhanced wireless listening experience for all your music.

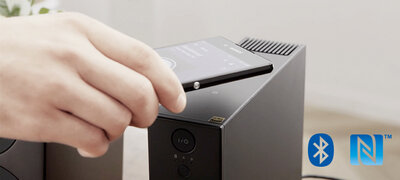

One-touch listening to play instant music
NFC (Near Field Communication) technology removes the need for wired connections and complex setup sequences. Simply touch your NFC-enabled smartphone or other device* to the on-body N-mark and start your music. No NFC? No problem. You can also pair the devices manually in Bluetooth® settings.
*See compatible devices.
USB-B and USB-A
Connect your Walkman® or PC to the rear USB-B terminal to play high-resolution sound sources. Connect Walkman® or USB storage devices to the front USB-A terminal to play high-resolution music using the SongPal app or the included remote control. You can also charge your iPhone or other mobile devices from here.
Unite your music with SongPal
Download SongPal for your smartphone or tablet and take control of your music collection. Simply connect via Bluetooth® and USB. Play music and view track information on a Walkman® or USB mass storage device connected to the USB-A terminal. Also use the app to customize sound settings for great, balanced audio.
Sleek and elegant design
Cosm280, Denver:
These speakers exude quality and have a silky smooth sound for the size. The near field audio listening is excellent. When you distance yourself from the speakers the sound isn’t quite as rich and the bass, imaging, and immersion takes a hit but that’s not what the speakers are for. Granted the sound still has a nice quality to it from a distance and can easily fill up a smaller room with some great sound.
Continue Reading...
Read More Reviews
|
Sound
|
|
SPEAKER TYPE
|
2-way, 2-driver speaker system, Bass reflex
|
|
SPEAKER SIZE
|
Tweeter: 1/2" soft dome type
Woofer: 2.44 in, cone type
|
|
Size & Weight
|
|
DIMENSIONS (W X H X D)
|
Main Unit: Approx. 2.16 x 7 x 8.25 in; Speaker Unit: Approx. 3.75 x 7 x 6.75 in
|
|
WEIGHT
|
Main Unit: Approx. 2.8 lbs (With Battery); Speaker unit: Approx. 3.3 lbs
|
|
Bluetooth® Specifications
|
|
FREQUENCY RANGE
|
2.4 GHz band (2.4000 GHz - 2.4835 GHz)
|
|
Interface
|
|
INPUT AND OUTPUT TERMINALS
|
USB A
USB B
Headphone Out
Speaker Output
|
|
General Features
|
|
POWER CONSUMPTION
|
29W (when on) / AC
|
|
REMOTE CONTROL
|
RMT-AA140UB
|
|
Eco and energy saving
|
|
POWER CONSUMPTION (OFF MODE)
|
not available
|
|
POWER CONSUMPTION (STANDBY MODE)
|
0.3 W
|
|
POWER CONSUMPTION (NETWORKED STANDBY MODE) – TERMINALS
|
1.5 W (Bluetooth®)/2.0 W (all terminals and networks connected)
|
|
STANDBY MODE ACTIVATED
|
After 15 minutes
|
|
NETWORKED STANDBY MODE ACTIVATED – TERMINALS
|
After 15 minutes (Bluetooth)
|
|
WIRELESS NETWORK(S) ON/OFF SWITCH
|
Press and hold (BLUETOOTH®) PAIRING button of the unit simultaneously for more than 4 seconds
|
The CAS1 High-Resolution Audio system accurately recreates original sound spaces through stereo speakers or headphones.
PRODUCT HIGHLIGHTS
- Immersive soundscapes for your spaces
- Hi-Res Audio: the way the artists truly intended
- Dual amps for two music experiences
- Near-field listening
- Headphone listening
- Place yourself center stage
- Enhancing your existing music
- More stunning realism than you ever heard
- Balancing powerful and precise sound
- Easily achieve the best listening position
- Powerful, extended bass
- Well-balanced sound output
- Uncompromised richness at any volume
SPECIAL FEATURES
Immersive soundscapes for your spaces
The CAS1 High-Resolution Audio system with built-in dual amplifiers accurately recreates original sound spaces through stereo speakers or headphones for immersive experiences.
Hi-Res Audio: The Way The Artists Truly Intended
Enjoy the subtlest nuances of studio-quality sound in higher-than-CD quality with High-Resolution Audio. Passion for music unites every component from signal to speaker, so it feels like the artist is performing right in front of you.
Dual amps for two music experiences
Independent amplification systems deliver outstanding High-Resolution Audio experiences for the distinct amplification requirements of headphones and speakers.
Near-field listening
Experience especially rich sound spaces, accurately recreated within 75 to 200 cm of the separate speakers.
Headphone listening
Independent high-quality DAC and headphone amp deliver High-Resolution Audio headphone listening.
Place yourself center stage
Experience your music with live performance richness through stereophonic sound reproduction that recreates the original sound space. Separate speakers distinctively create sound and improve directionality for immersive listening experiences, even in small spaces.
Enhancing your existing music
DSEE HX upscales existing sound sources to near high resolution sound quality, making you feel as if you are really there at the recording studio or concert.
More stunning realism than you ever heard
S-Master HX full digital amp technology, uniquely developed for High-Resolution Audio, reduces distortion and noise across a wide range of frequencies for rich, full-bodied sound.
Balancing powerful and precise sound
An independent headphone amp and high-end digital-analogue conversion (DAC) drive headphone sound.
Easily achieve the best listening position
Easily position speakers for best listening point. Place separate speakers 75-200 cm away for optimal listening position. Included brass spikes let you adjust the speaker angle, and included speaker bases provide stable acoustics on any surface.
Powerful, extended bass
The customized bass reflex port allows the compact speakers to reproduce deep, satisfying bass.
Well-balanced sound output
Brass spikes elevate speakers to dampen high frequencies and fix woofer-tweeter route discrepancy.
Uncompromised richness at any volume
Technologies like Pulse Height Volume and Low Volume Mode ensure dynamic audio response even where other digital amplifiers suffer, at low volumes.
Enjoy higher quality listening on various headphone types
A high grade amplifier drives the sound for both in-ear and over ear headphones. CAS1's dedicated headphone amp and separate high-end DAC adjusts output for more isolated headphone listening experiences. Use the dedicated headphone gain toggle switch to match impedance to headphone type to enhance the listening experience for headphones of varying impedance.
Gain toggle switch
Adjustable gain lets you use your favorite headphones. Use HI/LOW to match impedance to headphone type.
Robust headphone jack
Quality metal parts for stable connections and less distortion. Mini plug socket for wide compatibility.
Easy connections for wireless streaming
Wirelessly connect mobile devices to the separate speakers for convenience and improved sound. Stream your music with detail and clarity using Bluetooth and high-quality LDAC audio codecs.
High quality wireless audio streaming
LDAC is a new audio technology from Sony that allows you to enjoy high quality wireless audio via Bluetooth. Transmitting up to three times more data, LDAC produces an enhanced wireless listening experience for all your music.
PRODUCT FEATURES
Immersive soundscapes for your spaces
Hi-Res Audio: the way the artists truly intended
Dual amps for two music experiences
Near-field listening
Headphone listening
Place yourself center stage
Enhancing your existing music
More stunning realism than you ever heard
Balancing powerful and precise sound
Easily achieve the best listening position
Powerful, extended bass
Well-balanced sound output
Uncompromised richness at any volume
SPECIFICATIONS
Amplifier/Receiver Features
Amplifier Type: S-Master HX
Frequency Characteristics: 10Hz - 40kHz (+0dB,-3dB) (5ohm,USB-B input)
Application
Android Application: SongPal
PC Application: MediaGo / Hi-Res Audio Player
Bluetooth Spec
Bluetooth Technology: Version 3.0
Effective Range: 10m
Frequency Range: 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Interface: A2DP/AVRCP
Power Output: Power Class 2
Supported Audio Format(s): SBC/AAC/LDAC
iAP over Bluetooth: Yes
Inputs and Outputs
USB A Terminal: 1 (Front)
USB B Terminal: 1 (Rear)
Headphone Output(s): Stereo Mini
Output(s): Speaker: Screw Type
NFC
Bluetooth connection: Yes
Output Power
RMS(Root Mean Square): 20 W + 20 W (5 ohms, 20 Hz - 20 kHz, THD 1%)
Power
Output Power: Headphone (1%, 1KHz, 32ohm): 180mW+180mW
AC Plug Type: Brade
AC Power Adaptor: Yes
Auto Power OFF: Yes
Bluetooth Standby: Yes
Power Type: DC19.5V
Power Voltage: AC 100V-240V, 50/60Hz
Power consumption(Bluetooth standby mode): Less than 2W
Power consumption(On Operation) AC: 29W
Power consumption(Standby mode): Less than 0.5W
USB Power port for smartphone: Yes
Sound
Volume Control: Yes (Low volume mode)
Speaker
Diameter of Speaker Unit(Tweeter): 14 mm, soft dome type
Diameter of Speaker Unit(Woofer): 62mm, cone type
Speaker Type: 2 way, 2 drivers speaker system , Bass reflex
USB Features
Play (Mass Storage Class): Yes
USB Type A
USB Memory: Yes (FAT / FAT32 / exFAT file system)
USB-A
AAC: Yes
AIFF: 192/176.4/96/88.2/48/44.1 kHz 24/16bit
ALAC: 192/176.4/96/88.2/48/44.1 kHz 24/16bit
DSD(DSF/DSDIFF): 2.8MHz (* LPCM convert)
FLAC: 192/176.4/96/88.2/48/44.1 kHz 24/16bit
MP3: Yes
WAV: 192/176.4/96/88.2/48/44.1 kHz 24/16bit
WMA: Yes
KEY DETAILS
Brand: Sony
Color: Black
Model: CAS-1
WEIGHT & DIMENSIONS
Weight Main unit: 1.3 kg
Weight Speaker Unit: 1.5 kg
Dimensions Main unit (WxHxD): 55 x 178 x 210 mm
Dimensions Speaker Unit: 95 x 178 x 172 mm
