IPod®/iPhone® Music and Video playback
Listen to music and watch video stored on your iPod® or iPhone® while charging your device..
4 HDMI Inputs
Four HDMI™ inputs (up to 4K) let you connect a Sony® PlayStation®3 entertainment system, Blu-ray Disc™ player, any other HDMI-capable devices, for high definition video and audio..
4K Pass-through
Future-proof your system and take a quantum leap in video clarity. The STR-DH740 allows native 4K video content to be passed through to a 4K television or projector.
HD Digital Cinema Sound and Front High Speakers
Optimize your receiver to mimic the sound characteristics of movie theaters. Front Height mode enables vocal height and 3D effects for better positioning of effects giving added depth to visuals and concerts.
On-screen graphical user interface
Set-up and control the A/V receiver with intuitive on-screen graphical user interface. Change inputs, adjust settings and confirm volume levels on-screen.
3D Pass-through
Compatible with Blu-ray 3D™ movies, video games and other 3D content.
Advanced Blu-ray Disc™ Audio Decoding
Experience sound closer to the way it was captured with LPCM, Dolby® trueHD, ProLogic IIz and dts®-HD master audio codecs..
Digital Cinema Auto Calibration - Quick Speaker Set Up
Ensure you get the best sound experience from your A/V receiver and speakers with Digital Cinema Auto Calibration. Simply place the included microphone where you will be seated and settings are automatically optimized based on the distance, delays and placement of your speakers.
Audio Return Channel
Eliminate the need for extra cables connected to your TV. This feature allows audio to be sent from your compatible TV to your receiver through the same HDMI™ cable already being used to send audio and video to your TV..
3D Pass-through
Compatible with Blu-ray 3D™ movies, video games and other 3D content.
Standby pass-through of Audio & Video
Conveniently access all your HDMI™ connected devices without having to power on the receiver.
BRAVIA® Sync Capable
Conveniently operate and control select Sony® BRAVIA® Sync devices with one remote including: Sony Blu-ray Disc™ Players, BRAVIA® HDTVs, Sony home theater products..
24p True Cinema™ (pass-through)
Watch Blu-ray Disc™ movies in their native frame rate (24 frames per second) when paired with a 24p HDTV and playback device like a Blu-ray Disc™ Player or PlayStation®3 gaming console via HDMI™ cable..
|
Amplifier/Receiver
|
|
4 Ohm/8 Ohm Switching
|
Yes (6 ohm)
|
|
Advanced Auto Volume
|
Yes
|
|
Bi-AMP
|
Yes
|
|
Night Mode
|
Yes
|
|
Number of Amp channels
|
7ch
|
|
Speaker Impedance
|
6-16ohms
|
|
(6Ohms, 1kHz, 1ch driven) THD
|
0.9%
|
|
(6Ohms, 1kHz, 2ch driven) THD
|
1%
|
|
6Ohms, 1kHz, 1ch driven
|
145W
|
|
6Ohms, 1kHz, 2ch driven
|
105W+105W
|
|
6ohms, 20-20kHz, 2ch driven
|
90W+90W / (0.09%)
|
|
Band
|
6
|
|
DCAC
|
D.C.A.C.
|
|
Mic
|
Mono
|
|
Audio Features
|
|
96kHz/24bit
|
Yes
|
|
DTS / DTS-ES (Matrix6.1 / Discrete6.1)
|
Yes/Yes
|
|
DTS 96/24/ DTS Neo:6
|
Yes
|
|
DTS HD MA/ DTS HD HR
|
Yes/Yes
|
|
Dolby Digital EX/ Dolby Digital
|
Yes (Dolby Digital EX and Dolby Digital)
|
|
Dolby Dual Mono
|
Yes
|
|
Dolby Prologic/II /IIx /IIz
|
Yes (Prologic, ii, iix, iiz)
|
|
Dolby TruHD/Dolby Digital +
|
Yes (Dolby TruHD and Dolby Digital +)
|
|
LPCM (2CH/5.1CH/7.1CH) thru HDMI
|
Yes (2CH /5.1CH/ 7.1CH)
|
|
2ch
|
Yes
|
|
A.F.D. Auto
|
Yes
|
|
Analog Direct
|
Yes
|
|
Headphone 2ch
|
Yes
|
|
Headphone Direct
|
Yes
|
|
Jazz Club
|
Yes（SB/FH)
|
|
Live Concert
|
Yes（SB/FH)
|
|
Multi Stereo
|
Yes（SB/FH)
|
|
Neo:6 Cinema
|
Yes
|
|
Neo:6 Music
|
Yes
|
|
PLII Movie
|
Yes
|
|
PLII Music
|
Yes
|
|
PLIIx Movie
|
Yes
|
|
PLIIx Music
|
Yes
|
|
PLIIz Height
|
Yes
|
|
Portable Audio Enhancer
|
Yes
|
|
Pure Direct
|
Yes
|
|
Sound Field Link
|
Yes
|
|
Auto Tuning
|
Yes
|
|
Direct Tuning
|
Yes (via remote)
|
|
Preset Channel (FM/AM)
|
30 FM, 30 AM
|
|
General
|
|
Auto Standby
|
Yes
|
|
Digital Input Assign
|
Yes
|
|
Display
|
10 digit dot matrix
|
|
Power Consumption
|
240W
|
|
Power Consumption (Power Stand By)
|
0.3W
|
|
Power Requirement
|
120V 60Hz
|
|
Sleep Timer
|
Yes (up to 2 hours)
|
|
iPod Browsing with System (via USB)
|
Yes (Music)
|
|
Inputs and Outputs
|
|
Analog Audio In
|
2 (not including AV in)
|
|
Coaxial
|
1
|
|
Optical In
|
2
|
|
Headphone Out
|
Yes
|
|
Center
|
Yes
|
|
Front (Bass/Treble)
|
Yes
|
|
Front A (L/R)
|
Yes
|
|
Front High (L/R)
|
Yes
|
|
AV In: Including Front AV
|
2
|
|
HDMI In
|
4
|
|
Composite Video Out: Inc. Monitor Out
|
1
|
|
HDMI Out
|
1
|
|
Video Features
|
|
A/V SYNC
|
Yes(Fixed)
|
|
A/V Sync Sampling Frequency
|
48kHz
|
|
A/V Sync Time (msec)
|
60msec
|
|
3D over HDMI
|
Yes
|
|
Audio Return Channel
|
Yes
|
|
Audio Widget
|
Yes
|
|
BRAVIA® SYNC™ (CEC Control)
|
Yes
(One-Touch Play,
System Audio Control,
System Power Off, Theater Mode(No button on RM))
|
|
HDMI™ video output capability
|
4K, 1080p, 1080/24p
Deep Color (up to 36 bit)
x.v.Color (xvYCC)
|
|
Power Off Pass Through
|
Yes
|
|
Weight and Measurements
|
|
Receiver Dimension (WxHxD inches)
|
17 x 6-1/4 x 13 (430 x 156 x 329.4 mm)
|
|
Receiver Weight (pound)
|
17 lb 11oz (8.0 kg)
|

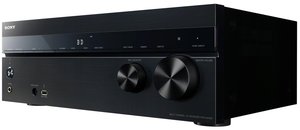

Everything comes together with 7.2 channels, 1015 watts and iPod and iPhone connectivity. It also handles most of your components with 4 HD inputs and 4K resolution pass-through. And for movie lovers, HD Digital Cinema Sound brings a true, theater-like experience to everything you watch.
7.2 Channel 1015W A/V Receiver (145W x 7 @ 6 ohms 1kHz 0.9% THD)
iPod/iPhone video and music playback5
4 HDMI Inputs
4K Pass-through
HD Digital Cinema Soundwith Front-High speakers (HD DCS)
Digital Cinema Audio Calibration for Quick Set-Up
3D pass-through
On-screen graphical user interface
Dolby TrueHD, Pro logic IIz and dts HD Enhanced Audio Codecs
Audio Return Channel uses just one cable for TV audio
Standby pass-through of Audio & Video via HDMI connected devices
BRAVIA Sync for multi-device control w/ one remote
24p True Cinema pass-through
iPod/iPhone Music and Video playback
Listen to music and watch video stored on your iPod or iPhone while charging your device.
4 HDMI Inputs
Four HDMI inputs (up to 4K) let you connect a Sony PlayStation3 entertainment system, Blu-ray Disc player, any other HDMI-capable devices, for high definition video and audio.
4K Pass-through
Future-proof your system and take a quantum leap in video clarity. The STR-DH740 allows native 4K video content to be passed through to a 4K television or projector.
HD Digital Cinema Sound and Front High Speakers
Optimize your receiver to mimic the sound characteristics of movie theaters. Front Height mode enables vocal height and 3D effects for better positioning of effects giving added depth to visuals and concerts.
On-screen graphical user interface
Set-up and control the A/V receiver with intuitive on-screen graphical user interface. Change inputs, adjust settings and confirm volume levels on-screen.
3D Pass-through
Compatible with Blu-ray 3D movies, video games and other 3D content
Advanced Blu-ray Disc Audio Decoding
Experience sound closer to the way it was captured with LPCM, Dolby trueHD3, ProLogic IIz and dts-HD master audio codecs.
Digital Cinema Auto Calibration - Quick Speaker Set Up
Ensure you get the best sound experience from your A/V receiver and speakers with Digital Cinema Auto Calibration. Simply place the included microphone where you will be seated and settings are automatically optimized based on the distance, delays and placement of your speakers.
Audio Return Channel
Eliminate the need for extra cables connected to your TV. This feature allows audio to be sent from your compatible TV to your receiver through the same HDMI cable already being used to send audio and video to your TV.
3D Pass-through
Compatible with Blu-ray 3D movies, video games and other 3D content
Standby pass-through of Audio & Video
Conveniently access all your HDMI connected devices without having to power on the receiver.
BRAVIA Sync Capable
Conveniently operate and control select Sony BRAVIA Sync devices with one remote including: Sony Blu-ray Disc Players, BRAVIA HDTVs, Sony home theater products.
24p True Cinema (pass-through)
Watch Blu-ray Disc movies in their native frame rate (24 frames per second) when paired with a 24p HDTV and playback device like a Blu-ray Disc Player or PlayStation3 gaming console via HDMI cable.6
Amplifier/Receiver
Amplifier Features
4 Ohm/8 Ohm Switching: Yes (6 ohm)
Advanced Auto Volume: Yes
Bi-AMP: Yes
Night Mode: Yes
Number of Amp channels: 7ch
Speaker Impedance: 6-16ohms
Amplifier Power
(6Ohms, 1kHz, 1ch driven) THD: 0.9%
(6Ohms, 1kHz, 2ch driven) THD: 1%
6Ohms, 1kHz, 1ch driven: 145W
6Ohms, 1kHz, 2ch driven: 105W+105W
6ohms, 20-20kHz, 2ch driven: 90W+90W / (0.09%)
DCAC Features
Band: 6
DCAC: D.C.A.C.
Mic: Mono
Audio Features
Decoding Format
96kHz/24bit: Yes
DTS / DTS-ES (Matrix6.1 / Discrete6.1): Yes/Yes
DTS 96/24/ DTS Neo:6: Yes
DTS HD MA/ DTS HD HR: Yes/Yes
Dolby Digital EX/ Dolby Digital: Yes (Dolby Digital EX and Dolby Digital)
Dolby Dual Mono: Yes
Dolby Prologic/II /IIx /IIz: Yes (Prologic, ii, iix, iiz)
Dolby TruHD/Dolby Digital +: Yes (Dolby TruHD and Dolby Digital +)
LPCM (2CH/5.1CH/7.1CH) thru HDMI: Yes (2CH /5.1CH/ 7.1CH)
Sound Field
2ch: Yes
A.F.D. Auto: Yes
Analog Direct: Yes
Headphone 2ch: Yes
Headphone Direct: Yes
Jazz Club: Yes(SB/FH)
Live Concert: Yes(SB/FH)
Multi Stereo: Yes(SB/FH)
Neo:6 Cinema: Yes
Neo:6 Music: Yes
PLII Movie: Yes
PLII Music: Yes
PLIIx Movie: Yes
PLIIx Music: Yes
PLIIz Height: Yes
Portable Audio Enhancer: Yes
Pure Direct: Yes
Sound Field Link: Yes
Tuner
Auto Tuning: Yes
Direct Tuning: Yes (via remote)
Preset Channel (FM/AM): 30 FM, 30 AM
General
Auto Standby: Yes
Digital Input Assign: Yes
Display: 10 digit dot matrix
Power Consumption: 240W
Power Consumption (Power Stand By): 0.3W
Power Requirement: 120V 60Hz
Sleep Timer: Yes (up to 2 hours)
iPod Browsing with System (via USB): Yes (Music)
Inputs and Outputs
Audio Inputs
Analog Audio In: 2 (not including AV in)
Coaxial: 1
Optical In: 2
Audio Outputs
Headphone Out: Yes
Speaker Outputs
Center: Yes
Front (Bass/Treble): Yes
Front A (L/R): Yes
Front High (L/R): Yes
Video Inputs
AV In: Including Front AV: 2
HDMI In: 4
Video Outputs
Composite Video Out: Inc. Monitor Out: 1
HDMI Out: 1
Video Features
A/V Sync Features
A/V SYNC: Yes(Fixed)
A/V Sync Sampling Frequency: 48kHz
A/V Sync Time (msec): 60msec
HDMI
3D over HDMI: Yes
Audio Return Channel: Yes
Audio Widget: Yes
BRAVIA SYNC (CEC Control): Yes (One-Touch Play, System Audio Control, System Power Off, Theater Mode(No button on RM))
HDMI(tm) video output capability: 4K, 1080p, 1080/24p Deep Color (up to 36 bit) x.v.Color (xvYCC)
Power Off Pass Through: Yes
Weight and Measurements
Receiver Dimension (WxHxD inches): 17 x 6-1/4 x 13 (430 x 156 x 329.4 mm)
Receiver Weight (pound): 17 lb 11oz (8.0 kg)
