ZLINK Z-Wave PLUS In-Wall Dimmer ZL-WD-100

Item # ZLWD100 (Part # ZL-WD-100)
Brand new, USA Warranty
and choose One-Day Shipping at checkout.
Item Description:
Many optional configurable features such as:
  • on/off orientation
  • ramp up and down times
  • soft on and off
  • and dimmer sensitivity
  • Description

    ZL-WD-100 is designed to provide easy on/off and dimming control of incandescent, and dimmable florescent and LED lighting. The dimmer replaces a standard in-wall light switch or dimmer and with the companion ZL-WA-100 Accessory Switch supports wired 3, 4 and 5-way circuits. The ZL-WD-100 is a rock solid performer and supports many optional configurable features such as: on/off orientation, ramp up and down times, soft on and off, and dimmer sensitivity for just the right feel. Multi-tap scene control is also supported. Simply install, add to your Z-Wave network and enjoy complete Z-Wave control.


    Works with incandescent and most dimmable florescent (CFL), or LED lighting

    Supports S2 and SmartStart for easy, secure inclusion

    Scene control capable, supports double and triple tap control

    Instantly reports manual status change to controller

    Single, configurable, LED indicates status

    Configurable orientation, LED right or left of paddle

    Fits standard single wall plate

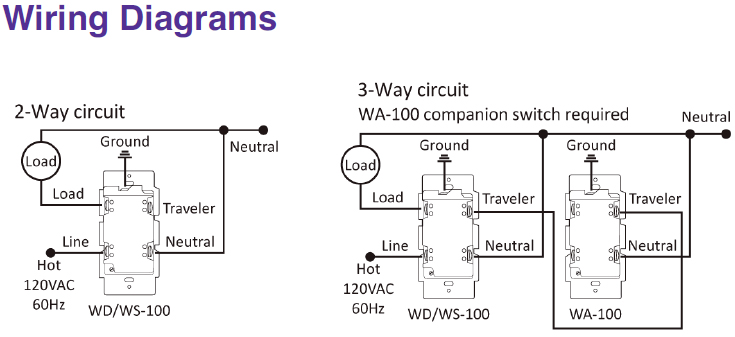

    Works with ZL-WA-100 accessory switch for wired multi-way circuits



    Max Load 600W Incandescent, 150W CFL/LED

    Input: 120VAC, 60Hz, 15A, Neutral required

    Operating Temp. Range: 32-104°F (0-40°C)

    UL and cUL listed


    US Region, 908.4MHz, 916MHz

    Complies with FCC Part 15, Class B

    Z-Wave PLUS, S2 Security, SmartStart

    Z-Wave signal repeater


    Over-The-Air (OTA) firmware upgrade capable

    Configurable parameters supported

    Physical Size

    Body 2.8” x 1.71” x 1.41”

    Front plate 4.13” x 2.13” x 0.076”

    In-wall dimmer (part no. ZL-WD-100)
