Description
ZL-WS-100 is designed to provide easy On/Off Z-Wave control of incandescent, florescent and LED lighting. The switch replaces a standard in-wall light switch and with the companion ZL-WA-100 Accessory Switch supports wired 3, 4 and 5-way circuits. Features include configurable orientation, selectable LED operation, and multi-tap scene control. Simply install, add to your Z-Wave network and enjoy complete Z-Wave control.
Features
Works with incandescent, CFL, or LED lighting
Supports S2 and SmartStart for easy, secure inclusion
Scene control capable, supports double and triple tap control
Instantly reports manual status change to controller
Configurable on/off orientation and nightlight feature
Fits standard single wall plate

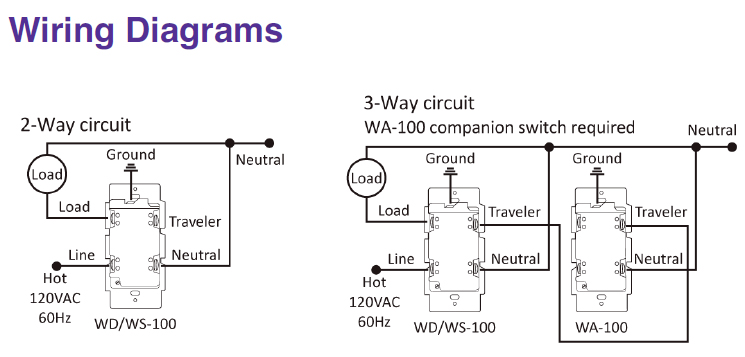

Works with ZL-WA-100 accessory switch for wired multi-way circuits
Specs
Electrical
Max Load 900W Incandescent, 200W CFL/LED, 1.2 HP Motor, 1800W Resistive
Input: 120VAC, 60Hz, 15A, Neutral required
Operating Temp. Range: 32-104°F (0-40°C)
UL and cUL listed
Z-Wave
US Region, 908.4MHz, 916MHz
Complies with FCC Part 15, Class B
Z-Wave PLUS, S2 Security, SmartStart
Z-Wave signal repeater
Network-Wide-Inclusion
Over-The-Air (OTA) firmware upgrade capable
Configurable parameters supported
Physical Size
Body 2.8” x 1.71” x 1.41”
Front plate 4.13” x 2.13” x 0.076”
